Product Description

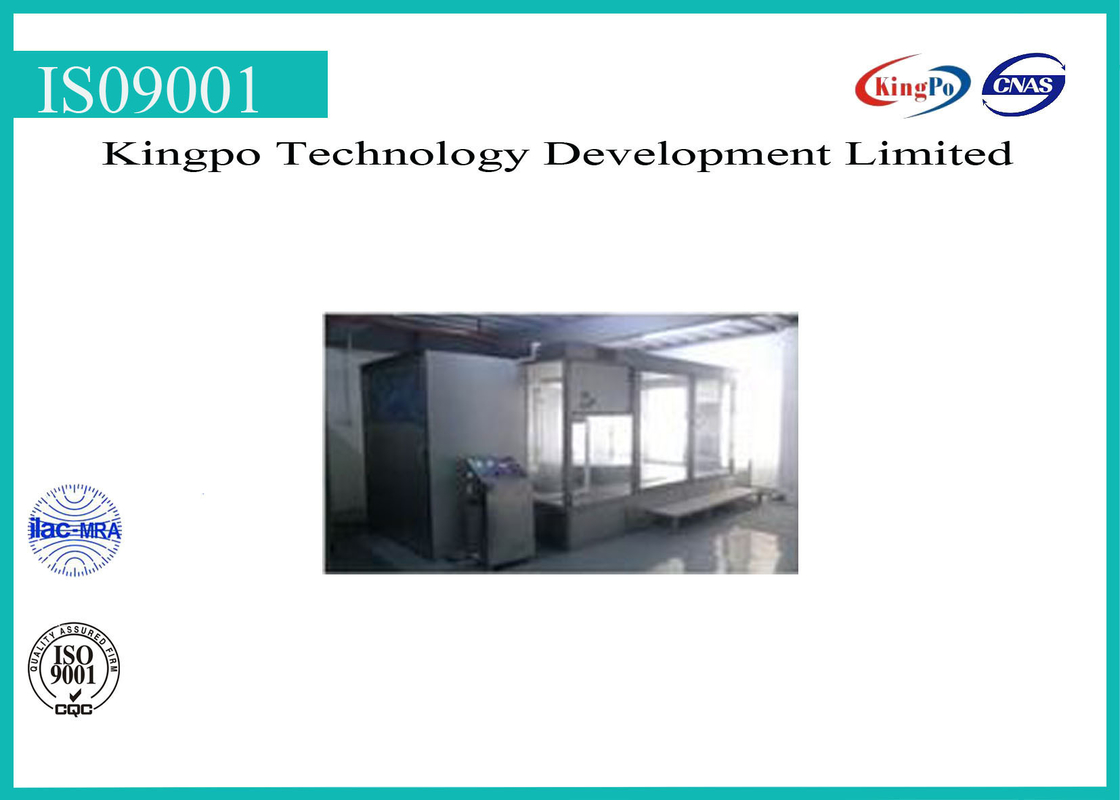

Military Standard Raining Tester

Technical Parameter

meet standard procedures of IP GJB150.8A-2009

1, interior dimension(mm):2500×1500×2000(D×W×H)(stainless steel supplied by toughened glass

exterior dimension(mm)3800X 1600X2700(D×W×H)

2, speed(rpm):1 ~3 adjustable

3, water dropping box(mm): (1)1000X1000MM pitch-row :20X20Mm,bore diameter:0.6Mm

4., distance between water dropping box and specimen:1000MM

5,  diameter of water dropping hole(mm):φ0 .4 ( dropping water diameter0.5-4.5MM)

6, clearance of pitchrow(mm):20 MM

7, time:1-999,999min(adjustable)

8, air speed:18m/s(water drop at 45°by blowing);don’t display speed

9, fan specification:3.5KW,380V (the converter adjust speed);2 sets.

10, sample temp.:generally 10°higher than normal temp.water

11, framework in square tube;closure plate using color steel plate

12, sample holder(for placing sample)with adjustable speed square:1000X1000MM

13, precipitation rate:1.7mm/min

14, control system:Independent R&D Teelong control system
