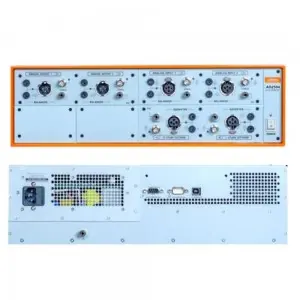

AD2504 is a basic test instrument in the AD2000 series audio analyzers. It expands two analog input interfaces on the basis of AD2502. It has the characteristics of analog 2 outputs and 4 inputs, and can adapt to the needs of multi-channel production line testing. The maximum input voltage of the analyzer is up to 230Vpk, and the bandwidth is >90kHz.In addition to the standard dual-channel analog input port, AD2504 can also be equipped with various modules such as DSIO, PDM, HDMI, BT DUO and digital interfaces.
Key Features
◆ Signal source residual THD+N ＜ -108dB
◆ Analog Dual Channel I / O
◆ Support digital interface expansion such as BT/HDMI+ARC/I2S/PDM
◆ Complete and powerful electroacoustic analyzer functions
◆ Code-free, complete a comprehensive test within 3 seconds
◆ Support LabVIEW , VB.NET , C#.NET , Python and other languages for secondary development
◆ Automatically generate test reports in various formats
◆ Support Dolby&DTS digital stream playback
Performance
| Analog Output | |
| Number Of Channels | 2 Channels, Balanced / Unbalanced |
| Signal Type | Sine Wave, Dual-Frequency Sine Wave, Out-Of-Phase Sine Wave, Frequency Sweep Signal, Noise Signal, WAVE File |
| Output Voltage | Balanced 0～21.2Vrms；Unbalanced 0～10.6Vrms |
| Flatness | ±0.01dB（20Hz—20kHz） |
| Frequency Range | 0.1Hz ~ 80.1kHz |
| Frequency Accuracy | ± 0.0003% |
| Residual THD+N | ＜ -108dB @ 20kHz BW |
| Output Impedance | Unbalanced 20ohm/50ohm/75ohm/100ohm/600ohmBalanced 40ohm/100ohm/150ohm/200ohm/600ohm |
| Analog Input | |
| Number Of Channels | 4 Channels , Balanced / Unbalanced |
| Maximum Input Voltage | 230Vpk |
| Input Impedance | Balanceed300ohm / 600ohm / 200kohm ; Unbalanced 300ohm / 600ohm / 100kohm |
| Voltage Measurement Flatness | ±0.01dB（20Hz—20kHz） |
| Single Harmonic Analysis | 2～10 Times |
| Residual Input Noice | <1.3 UV@ 20kHz BW |
| Maximum FFT Length | 1248k |
| Intermodulation Distortion Model | SMPTE、 MOD, DPD |
| Frequency Measurement Range | 5Hz ~ 90kHz |
| Frequency Measurement Accuracy | ± 0.0003% |
| Phase Measurement Range | —90°～270°，±180°，0～360° |
| DC Voltage Measurement | Support |
| AUX Modules | |
| AUX Specification | High Level 5V; Low Level OV; Output Default Low Level; Input Default High Level |
| Pin | PIN 1-8: IN Or OUT 1-8; PIN 9: GND |
| Equipment Specification | |
| Operating Temperature | —10°C～40°℃ |
| Shell Material | Metal Shell |
| Control Ternimal | AOPUXIN KK Audio Analysis Software |
| Rated Voltage | AC:100V～240V |
| Rated Power | 160VA |
| Dimention(WXDXH） | 440mm×470mm×135mm |
| Weight | 9.9KG |
