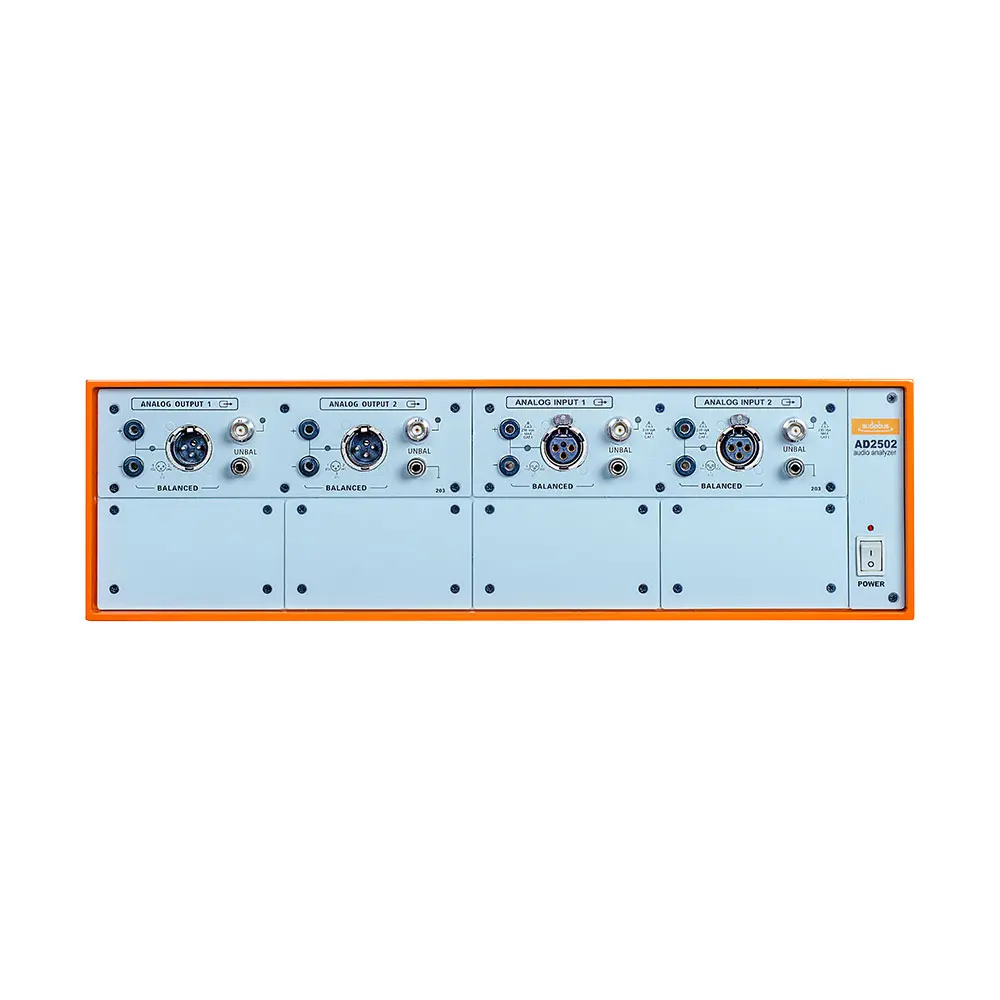

Ad2502 Audio Analyzer With Rich Expansion Card Slots Uch As Dsio Pdm Hdmi Bt Duo And Digital Interfaces
AD2502 is a basic test instrument in the AD2000 series audio analyzer, which can be used as a professional R&D test or production line test. Maximum input voltage up to 230Vpk, bandwidth >90kHz. The biggest advantage of AD2502 is that it has very rich expansion card slots. In addition to the standard dual-channel analog output/input ports, it can also be equipped with various expansion mod ...
AD2502 is a basic test instrument in the AD2000 series audio analyzer, which can be used as a professional R&D test or production line test. Maximum input voltage up to 230Vpk, bandwidth >90kHz. The biggest advantage of AD2502 is that it has very rich expansion card slots. In addition to the standard dual-channel analog output/input ports, it can also be equipped with various expansion modules such as DSIO, PDM, HDMI, BT DUO and digital interfaces.
Key Features
◆ Signal source residual THD+N ＜ -108dB ◆ Analog Dual Channel I / O ◆ The AD2500 series is a basic model with high compatibility and scalability. Reserve 4 port slots, support BT, I²S, HDMI+ARC, PDM and other digital interface expansion ◆ Complete and powerful electroacoustic analyzer functions
◆ Code-free, complete a comprehensive test within 3 seconds ◆ Support LabVIEW , VB.NET , C#.NET , Python and other languages for secondary development ◆ Automatically generate test reports in various formats ◆ Support Dolby&DTS digital stream playback
Performance
Analog Output
Number Of Channels
2 Channels, Balanced / Unbalanced
Signal Type
Sine Wave, Dual-Frequency Sine Wave, Out-Of-Phase Sine Wave, Frequency Sweep Signal, Noise Signal, WAVE File
