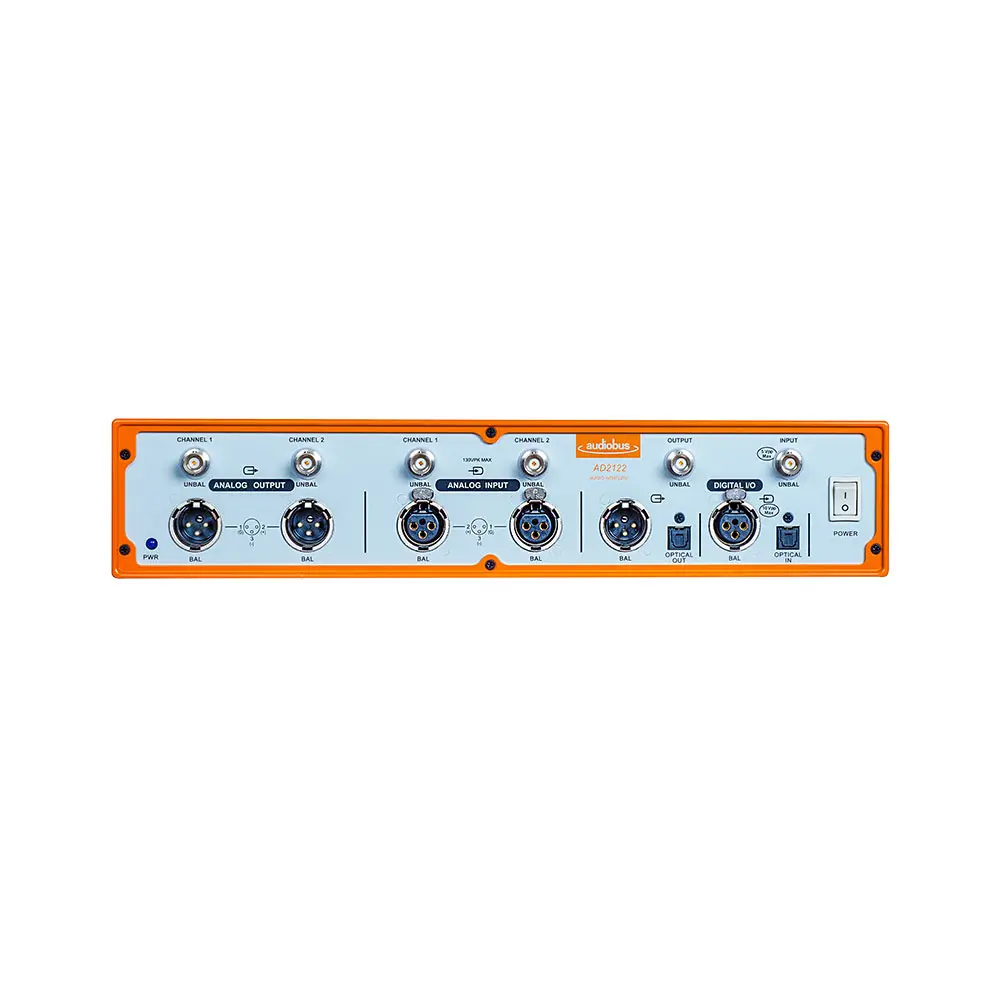

Ad2122 Audio Analyzer Used For Both Production Line And Test Instrument

AD2122 is a cost-effective multifunctional test instrument among the AD2000 series audio analyzers, which meets the requirements of fast testing and high precision in the production line, and can also be used as an entry-level R&D test instrument. AD2122 provides users with a variety of channel options, with analog dual input and output balanced/ unbalanced channels, digital single input and ...

Send Inquiry Chat Now

Product Details
Inquiry

Key Features

◆ Signal source residual THD+N ＜ -106dB
◆ Analog Dual Channel I / O
◆ Standard configuration supports SPDIF/TOSLINK/AES3/EBU/ASIO digital interface
◆ Complete and powerful electroacoustic analyzer functions

◆ Code-free, complete a comprehensive test within 3 seconds.
◆ Support LabVIEW , VB.NET , C#.NET , Python and other languages for secondary development
◆ Automatically generate test reports in various formats

Performance

Analog Output
Number Of Channels	2 Channels, Balanced / Unbalanced
Signal Type	Sine Wave, Dual-Frequency Sine Wave, Out-Of-Phase Sine Wave, Frequency Sweep Signal, Noise Signal, WAVE File
Frequency Range	2Hz ~ 80.1kHz
Frequency Accuracy	± 0.0003%
Residual THD+N	< -106dB @ 1kHz , 2Vrms

Analog Input
Number Of Channels	2 Channels , Balanced / Unbalanced
Maximum Input Voltage	130Vpk
Residual Input Noise	< 1.4 UV @ 20kHz BW
Maximum FFT Length	1248k
Frequency Measurement Range	5Hz ~ 90kHz
Frequency Measurement Accuracy	± 0.0003%

Digital Output
Number Of Channels	Single Channel (Two Signals), Balanced / Unbalanced / Fiber Optic
Sampling Rate	22kHz ~ 216kHz
Sample Rate Accuracy	±0.0003%
Signal Type	Sine Wave, Dual-Frequency Sine Wave, Out-Of-Phase Sine Wave, Frequency Sweep Signal, Noise Signal, WAVE File
Signal Frequency Range	2Hz ~ 107kHz
