AD2122 Audio Analyzer One Click Testing Automated Execution Continuous Scanning Technology

Durability:	High/Medium/Low	Function:	Testing
Maintenance:	Easy/Difficult	Portability:	Portable/Non-Portable
Power Supply:	AC/DC/Battery	Safety Features:	Overload/Short Circuit Protection
Size:	Small/Medium/Large	Software:	Compatible/Upgradable
Type:	Test Equipment	Warranty:	Yes/
Highlight:	AD2122 Audio Analyzer Audio Analyzer One Click Testing

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

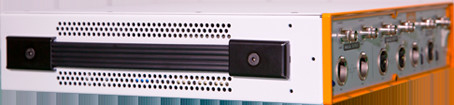

AD2122 audio analyzer

AD2122 is a multi-functional integrated audio tester that features the best audio analysis performance in production line testing.

With 9 technical advantages, one-click automatic measurement, test results on all important audio parameters can be obtained in 3 seconds.Best in class test speed, performance, automation and simplicity in use.

Nine technical advantages in audio analysis

1. FFT measurements with THD+N -106 dB, 24-bit, 1 million test points

2. 0 programming, full test in 3 seconds

3. One-click measurement within user interface

4. Test control with foot switch or barcode scanner

5. Allow sharing of project files and acquired .wav files to any AD2000 product

6. Creation and storage of customizable test reports

7. Advanced measurement library covering IMD, MOL, dynamic range, FFT

8. Software has built-in standard acoustic test functions

9. Standard PC USB interface

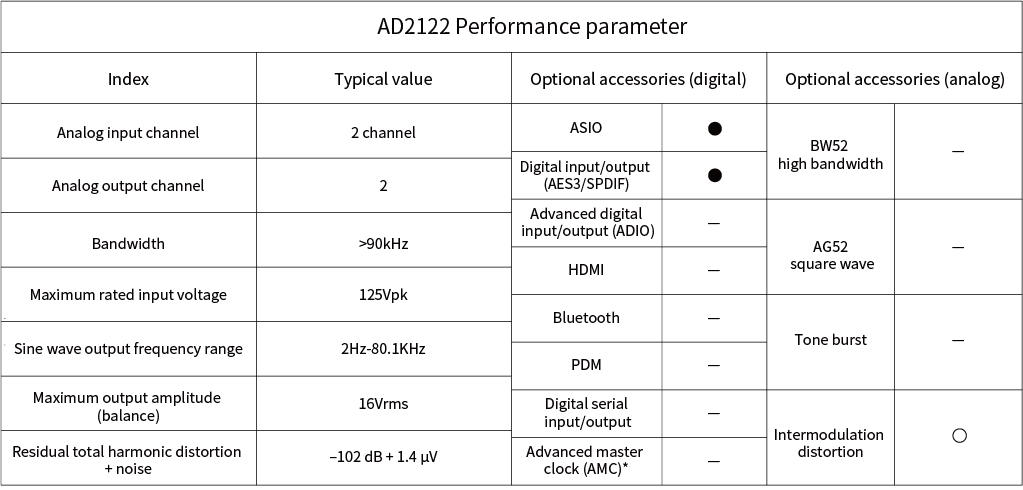

Product parameters
