64L Temperature And Humidity Chamber -20℃ To 150℃

Model:KP-8107-64LInternal Dimension (W*D*H):W400 Mm*H400 Mm*D400 Mm
External Dimension (W*D*H):W680mm*H1200mm*D1350mmTemperature Range:-20℃ To 150℃
Humidity Range:20~98%RHHeating/cooling Overshoot:≤±2℃
Highlight:64L Temperature And Humidity Chamber

ASTM E1171 Temperature And Humidity Chamber

EN 14511 Environmental Test Chamber

  • Product Details
  • Inquiry

Product Description

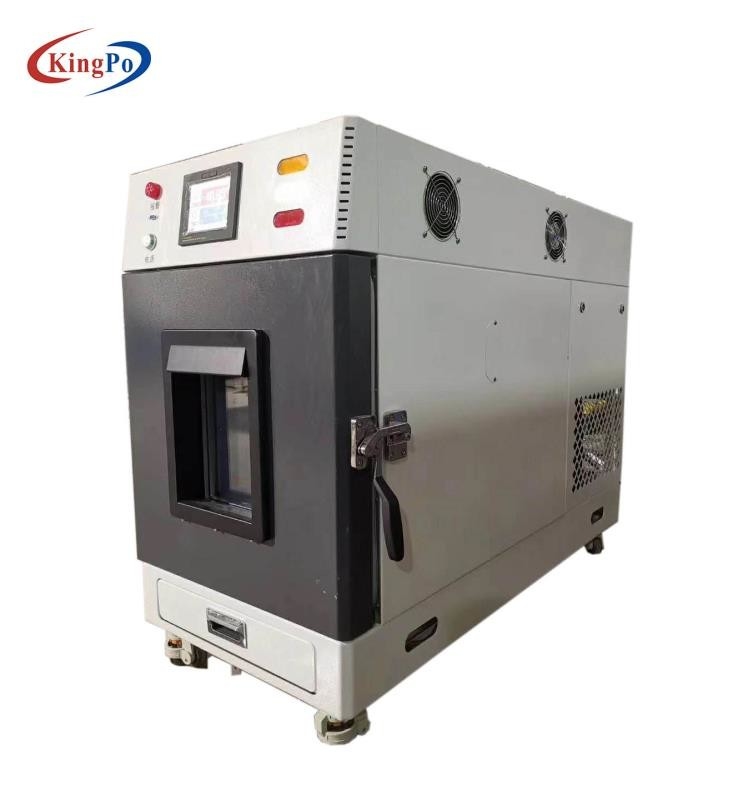

64L Temperature and humidity chamber -20℃ to 150℃



Product Description:

This Temperature Humidity Chambers can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-20℃~+150℃), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.chamber power can be customized.



Temperature Humidity Chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test… Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes.



Test Standards:

IEC 60068-2-1, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-38

IEC 61215 – 10.11, 10.12, 10.13

EN 14511

ASTM E1171



Chamber Specification

ModelKP-8107-64L
Volume64L
Interior dimensionW400 mm*H400 mm*D400 mm
outer chamber sizeW680mm*H1200mm*D1350mm
Temp. range-20℃ to 150℃
Humidity range20%RH-98%RH
Temp.fluctuation±0.5℃
Humidity fluctuation±2%RH
Temp.error≤2.0℃
Humidity errorA)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH.
Temp. conformity≤±2.0℃
Humidity conformity+2,-3%RH
heating rate3.0℃/MIN(from-20℃ to 80℃;nonlinear;no load)
Cooling rate1.0℃/MIN(from 80℃ to -20℃nonlinear;no load)
Heating/cooling overshoot≤±2℃
noise≤70dB(A Weighting)
Exterior materialtwo sided galvanized static resin high temperature sprayed sheet
Interior materialSUS#304 seal welding,cold&heat resistance stainless steel with thickness 1.2MM
ControllerMicrocomputer controller with high accuracy;7 inches TFT LEDLCD Touch Screen
compressorTecumseh,France
Power380V, 6KW
